Introduction
This article explains how the Configuration Source page displays the source of the currently applied configuration on Amino H-series devices. This is particularly useful to identify the source of possible problems while updating the device configuration.
Prerequisites
This article assumes you are working with an Amino H200, running firmware version 25.8.2620.8R or higher, and have access to DHCP, Orchestrate, or USB provisioning.
Summary
The Configuration Source page displays the provisioning source and related details based on the current device state.
The following status may be displayed:
| Source Status | Description |
|---|---|
| DHCP | Configuration successfully retrieved from DHCP. |
| DHCP (Last known) | The device is using the last successfully applied DHCP configuration. |
| DHCP (Update failed) | A DHCP configuration update failed, and the previous configuration remains active. |
| Orchestrate | Configuration successfully retrieved from Orchestrate (TR-069). |
| Orchestrate (Last known) | The device is using the last successfully applied Orchestrate configuration. |
| Orchestrate (Update failed) | An Orchestrate configuration update failed, and the previous configuration remains active. |
| USB | Configuration loaded from a USB source. |
| USB (Update failed) | The USB configuration could not be applied. |
| None | No valid configuration is available. |
Additional details, such as URLs, timestamps, or error information, may be displayed depending on the source status.
The examples below illustrate common Configuration Source states:

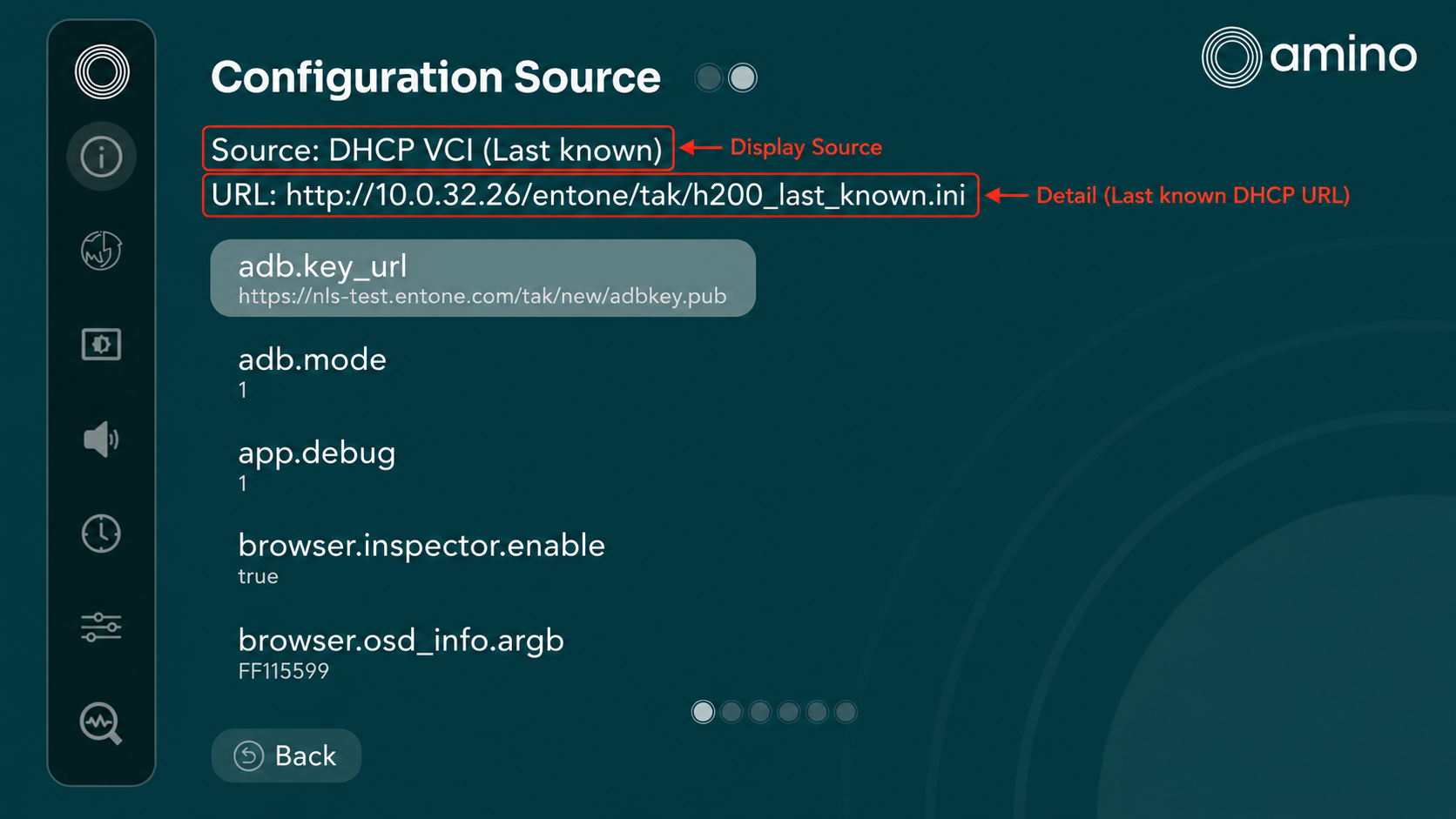

DHCP (Last known)

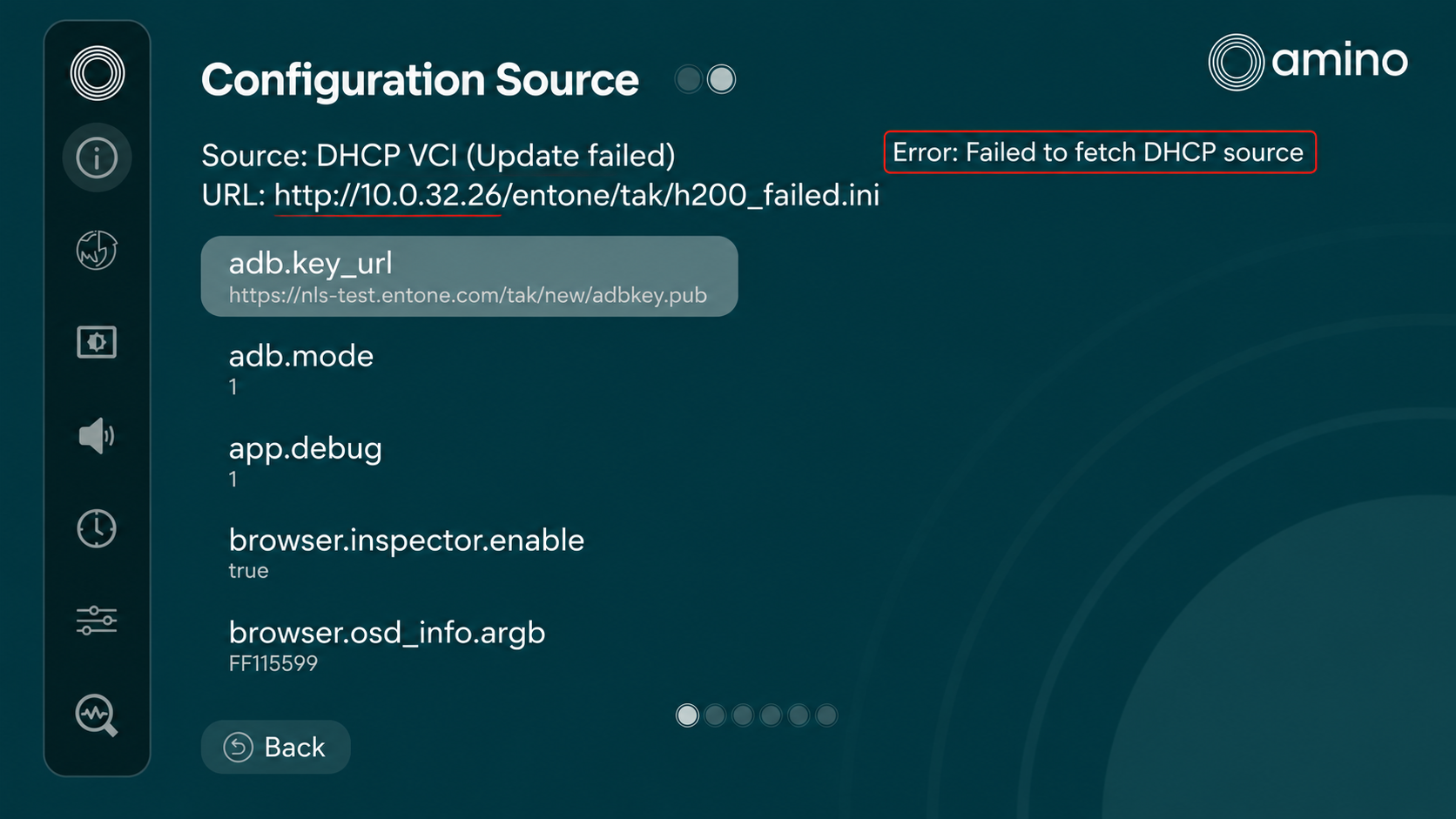

DHCP (Update failed)

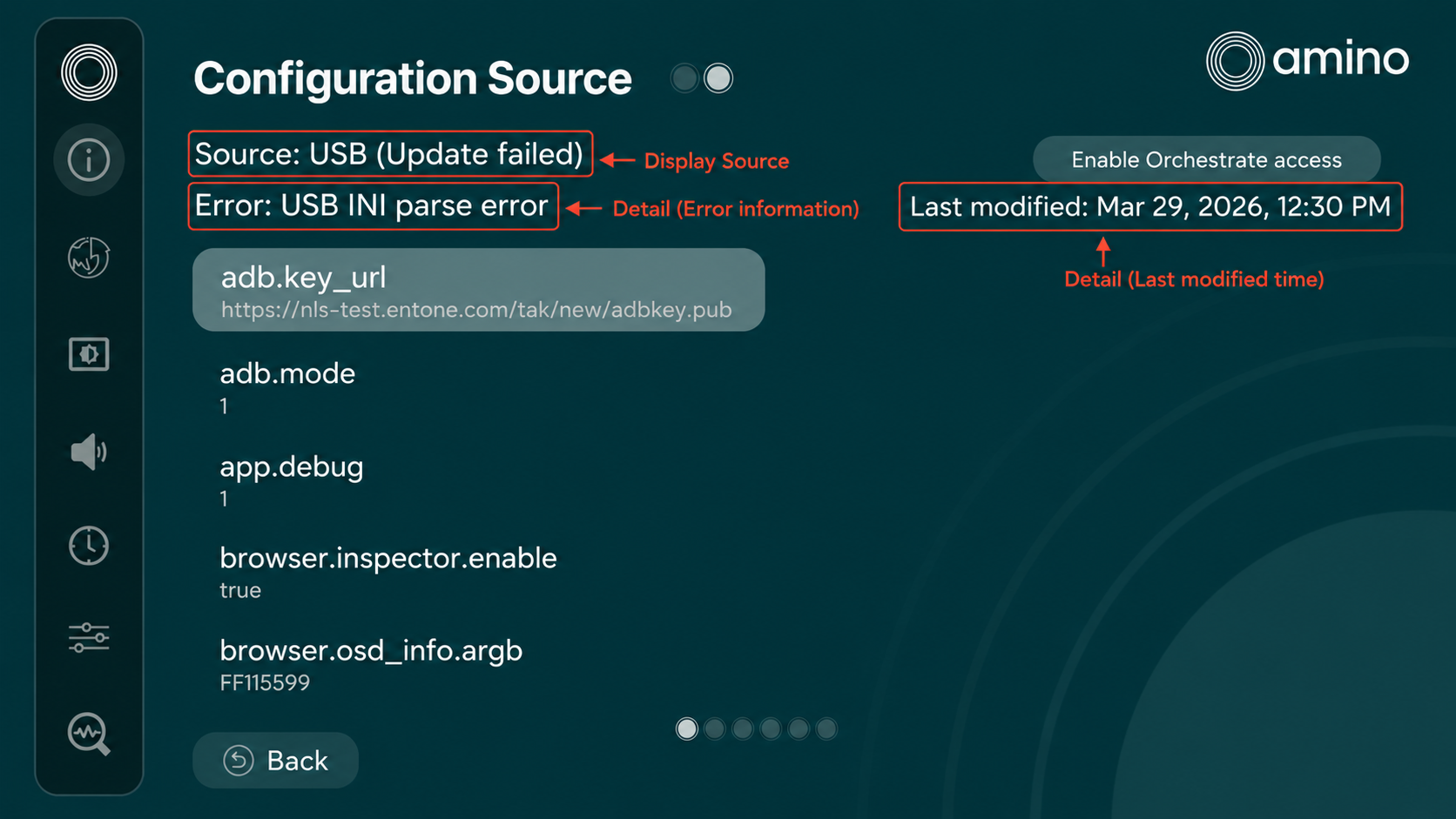

USB (Update failed)
