Introduction
When there is a need for using the Amino infrared remote and, for some reason, the AminoVU device is not on its line of sight, the most common scenario is to use an infrared remote extender.
This consists of a long, 3-meter cable, with a receiver in one end and a 3.5mm jack on the other. If you chose to use the Amino developed one, we ensure a smooth plug-and-play functionality.
Please consider that not all AminoVU device models have support for an IR extender. Please check the supported models' table bellow.
What we offer
Amino has developed an IR extender that is fully compatible with our STB's.
Should you be interested, please contact your designated account manager for more information. We would be happy to provide you with a sample, should it be needed.

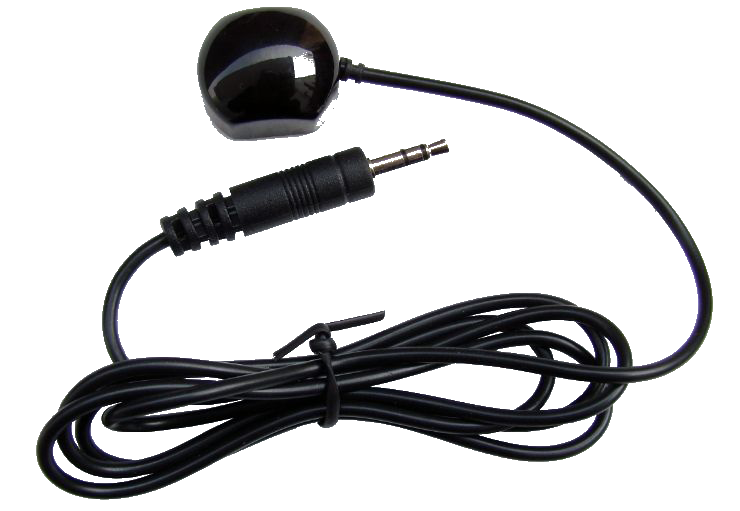

Amino IR extender details:
| Part number | |
| 99-970310-00 | IR extender/receiver, 3m cable, with a mounting kit |
Support, per STB model
Current models
| AminoVU model | Support |
| Aria 600 | Yes |
| Aria 600x | No |
| Kamai 650 | Yes |
| Aria 700 | Yes |
| Aria 700x | No |
| Kamai 7* | No |
| Kamai 7Q* | No |
| Kamai 7x* | No |
| H200 | Yes |
*Although these devices have a physical 3.5mm jack on the back, it is used for analogue video, therefore there is no support for an IR extender.
Older models
| STB model | Support |
| Aria 500 | Yes |
| Aria 560 | Yes |
| Kamai 500 | No |
| Amulet 510/560 | No |
How to connect

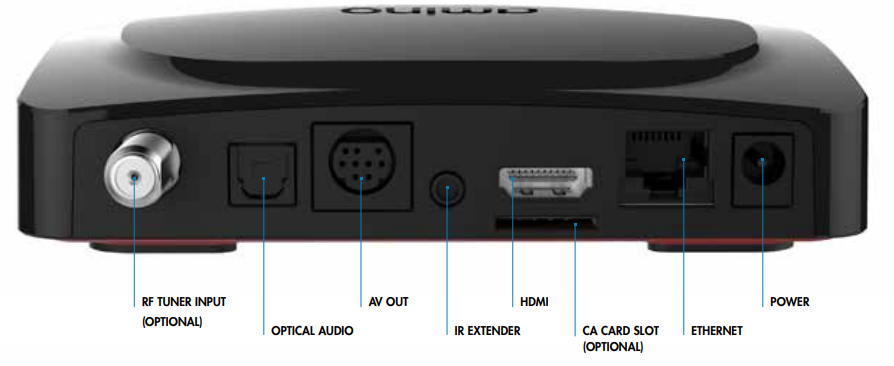

For devices that support this feature, you should find a 3.5mm jack connection on the back. Simply plug the IR extender into this port and place the receiver where the remote IR signal can reach, i.e. line of sight.
3rd party IR remote extenders
We do not provide support for 3rd party IR extender.
If you chose to use them, we cannot be held responsible for any possible incompatibility.
