Introduction

The purpose of this article is to provide the steps to select and describe the behavior of the different Network Modes available for the Enable set-top boxes.

Prerequisites

This article assumes that you have an Enable set-top Box. Enable set-top box families will include Aria, Amulet, and Kamai.

Summary

Launching the User Menu

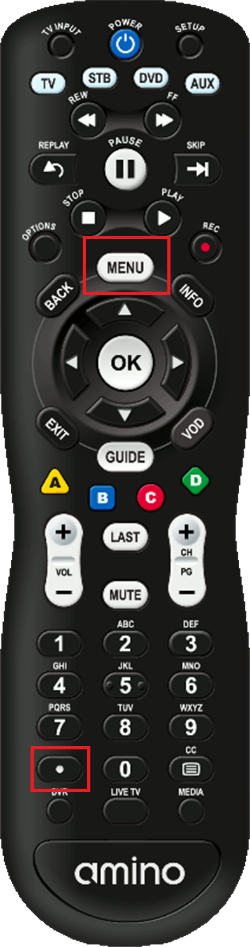

If you are using the Nova remote control, press the. (dot) key immediately followed by the menu key.

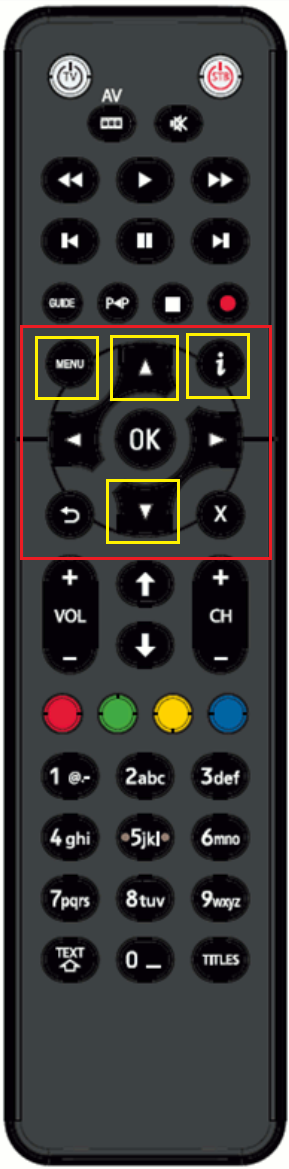

If you are using the Maxi remote control, press the following key sequence: INFO > UP > INFO > DOWN > MENU

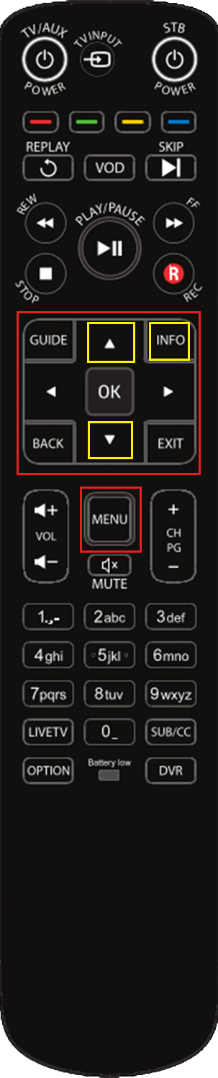

For customers with the OAK remote, press the following key sequence: INFO > UP > INFO > DOWN > MENU

Oak Remote-menu.png

Modes

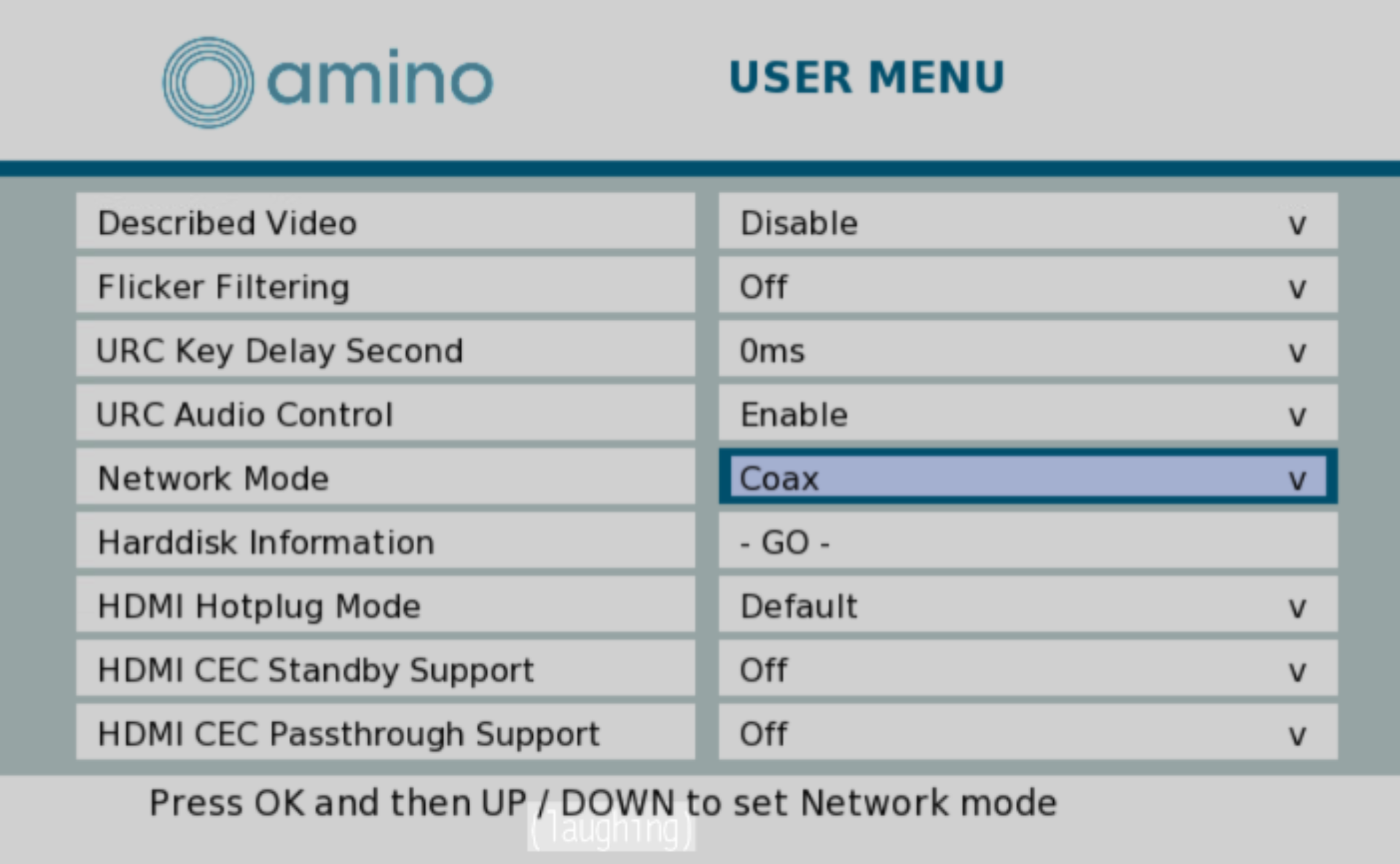

The different network mode options are available in the Hardware/User menu under "Network Mode". There are 4 modes available: (Auto, Coax+Ethernet (Bridge), Coax, and Ethernet).

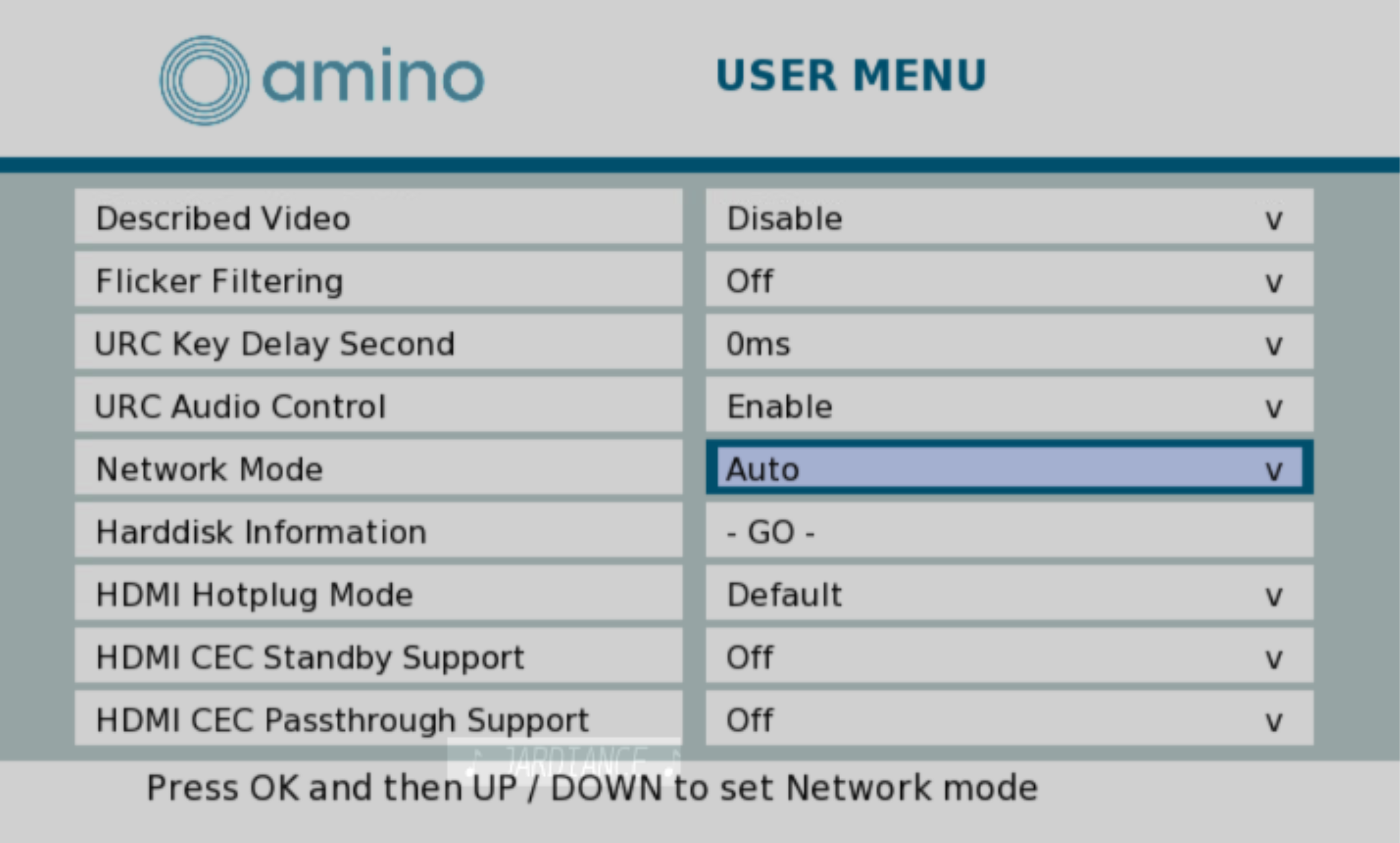

Auto Mode (Default mode)

The STB will attempt MOCA link detection for 60 seconds; if no MOCA link is detected, it will proceed to DHCP for 60 seconds. If this step fails, it will move to the next step.
The STB will try Ethernet Link detection for 5 seconds, If an Ethernet link is detected, it will proceed to DHCP for 60 seconds. If this step fails, it will move to the next step.
The STB will continue trying MOCA indefinitely. (The STB will NOT retry the Ethernet connection until a reboot is performed).

Example output console log:

******************** starting network 24.42 ********************

No interface to bridge!

caching, new cache contents: 25 fonts, 1 dirs

/usr/share/fonts/fonts: try starting network by coax

caching, new cache contents: 3 fonts, 0 dirs

/usr/share/opera/fonts: skipping, no such directory

/usr/share/fonts: eth1: Hostless-mode set to 0

hostless_mode: 0  ( 0x0 )

network_debug: touch_active_info IN pre_start coax moca eth1 Wed Jan  1 00:00:19 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:00:19 GMT 2020

caching, new cache contents: 25 fonts, 1 dirs

/usr/share/opera/fonts: skipping, no such directory

/var/cache/fontconfig: cleaning cache directory

fc-cache: succeeded

fc-cache: succeeded

MoCA bridge is not connected

coax start fail

Stop eth1

try starting network by eth

network_debug: touch_active_info IN pre_start eth eth eth0 Wed Jan  1 00:01:07 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:07 GMT 2020

network_debug: link_up_retry: 5s

Ethernet cable is disconnected

eth start fail

/sbin/wpa_supplicant

Failed to connect to non-global ctrl_ifname: (nil)  error: No such file or directory

Stop eth0

Fallback to first avaliable network device and keep trying ...

try starting network by coax

eth1: Hostless-mode set to 0

hostless_mode: 0  ( 0x0 )

network_debug: touch_active_info IN pre_start coax moca eth1 Wed Jan  1 00:01:14 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:14 GMT 2020

MoCA bridge is not connected

.....

.....

.....

eth1: Hostless-mode set to 0

hostless_mode: 0  ( 0x0 )

network_debug: touch_active_info IN pre_start coax moca eth1 Wed Jan  1 00:02:49 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:02:49 GMT 2020

MoCA bridge is not connected

Coax + Ethernet (Bridged) Mode

In this mode, an alias is assigned to the Ethernet port (eth0:moca). The STB will use this eth0:moca to obtain an IP address.

Example console log output:

******************** starting network 24.50 ********************

caching, new cache contents: 25 fonts, 1 dirs

/usr/share/fonts/fonts: caching, new cache contents: 3 fonts, 0 dirs

/usr/share/opera/fonts: skipping, no such directory

/usr/share/fonts: try starting network by bridge

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:00:20 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:00:20 GMT 2020

eth1: Hostless-mode set to 0

caching, new cache contents: 25 fonts, 1 dirs

/usr/share/opera/fonts: skipping, no such directory

/var/cache/fontconfig: cleaning cache directory

fc-cache: succeeded

fc-cache: succeeded

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:01:06 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:06 GMT 2020

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:01:06 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:06 GMT 2020

network_debug: link_up_retry: 3s

Cable disconnected

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:01:11 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:11 GMT 2020

eth1: Hostless-mode set to 0

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:01:57 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:57 GMT 2020

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:01:57 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:01:57 GMT 2020

network_debug: link_up_retry: 3s

Cable disconnected

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:02:02 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:02:02 GMT 2020

eth1: Hostless-mode set to 0

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:02:49 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:02:49 GMT 2020

network_debug: touch_active_info IN pre_start bridge bridge br0 Wed Jan  1 00:02:49 GMT 2020

network_debug: echo touch_active_info clean /var/tmp/ip_obtained

network_debug: touch_active_info OUT Wed Jan  1 00:02:49 GMT 2020

network_debug: link_up_retry: 3s

Cable disconnected

Coax Mode

The Ethernet port is shut down and the STB will only use the COAX for network communication.

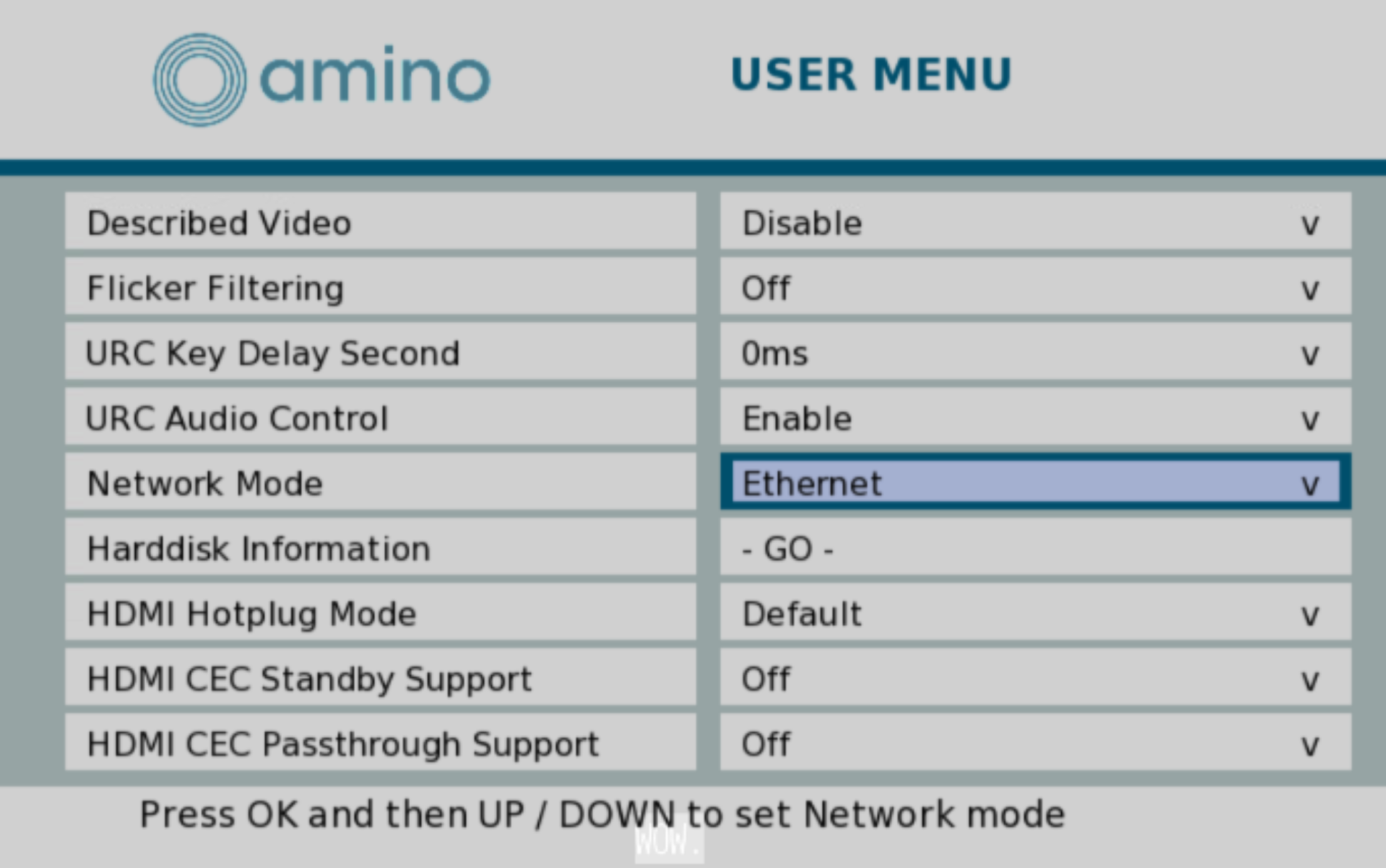

Ethernet Mode

The coax port is shut down and the STB will only use the Ethernet port for network communication.
