Important note: Due to the introduction of Android 14, we had to replace the previously supported Wi-Fi dongle. See the article below for more details.


Introduction

This article shows how to add and set up a Wi-Fi dongle on the H200. With the move to Android 14, we had to switch to a different Wi-Fi dongle as the Tenda AC1300 does not have compatible drivers.

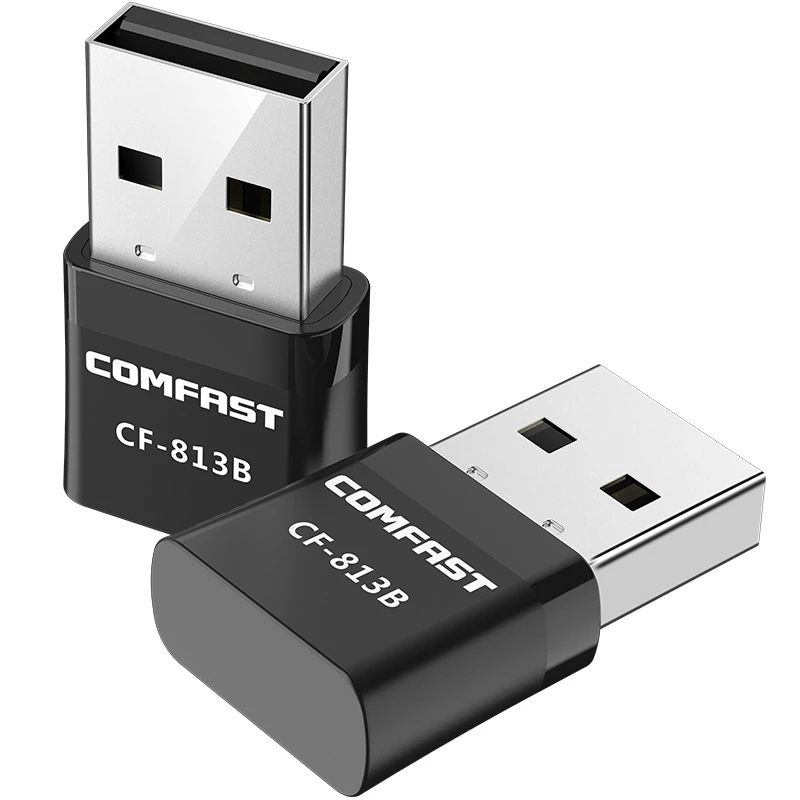

Starting from 25.8.2620.10R the Comfast CF-813B is the new supported dongle.

Prerequisites

Own a Tenda AC1300 or Comfast CF-813B USB dongle.

Summary

Preparation

To use Wi-Fi on the H200 STB, you will need one of the following Wi-Fi dongles.

Instructions

For setting up the H200 with the Wi-Fi Dongle:

1. Ensure your H200 is running the correct release by upgrading it using Ethernet before using the Wi-Fi Dongle.

2. Enable the INI option key.link.blue="pkg://com.android.tv.settings?cls=com.android.tv.settings.MainSettings" to allow you to open the Settings Menu from the RCU Blue button.

3. Plug in the Wi-Fi Dongle to H200 before or after powering on.



   H200 with Wi-Fi dongle inserted



4. Press the RCU Blue button to open the Settings menu.



   Settings Page



5. Select the “Network & Internet” section.

6. Disconnect the Ethernet cable from the H200, if plugged in.

7. Enable “Wi-Fi”

8. Choose the AP you want to connect to and follow the steps.



For video playback setup information on H200 STB, please refer to H200 Quick Start Guide
